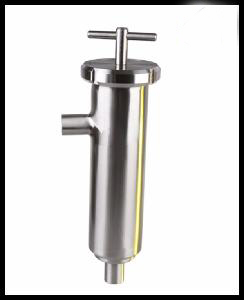

Straight Sanitary Filters:-

straight-sanitary-filter

Straight Sanitary Filters is a commonly design of sanitary filter. Wellgreen provides straight sanitary filter and filter housing dimension from from 1” to 4” in stainless steel 304 or 316L. Sanitary filters and strainers enables the pipeline produce purified liquids, it is widely used in the equipment of Brewery, Beverage, Biopharmaceutical etc.








Straight Sanitary Filters – Stainless Steel Hygienic Strainers

Size 1/2″ thru 4″
Material T304, T316L, En 1.4301, EN 1.4404 etc.
Type Sanitary Straight Filter
Connection Threaded, Welding, Tri-Clamped
Standard 3A, DIN, SMS, BS, ISO, BPF, ISO, IDF,INCH etc.
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Products Name*Dimension

*Material

*Quantity

*Standard

*Polish requests


welded-sanitary-straight-filters-strainers

Dimension of Welded Sanitary Straight Filters – DIN Series

Size

A

B

D5

DN25

306

28

95

DN32

306

34

110

DN40

306

40

110

DN50

406

52

110

DN65

503

70

127

DN80

561

85

148

DN100

662

104

178


welded-sanitary-straight-filters-strainers

Dimension of Clamped Sanitary Straight Filters – DIN Series

Size

DxT

A

B

DN25

28*1.5

200

93.0

DN32

34*1.5

285

106.5

DN40

40*1.5

285

106.5

DN50

52*1.5

350

106.5

DN65

70*2.0

450

136.0

DN80

85*2.2

500

200.0

DN100

104*2.0

600

200.0


Enquiry for Straight Sanitary Filters
